Cold-rolled steel purlins and side rails

Side rails and purlins in thin cold-formed steel

Need to calculate cold-rolled steel side rails or purlins? [email protected]

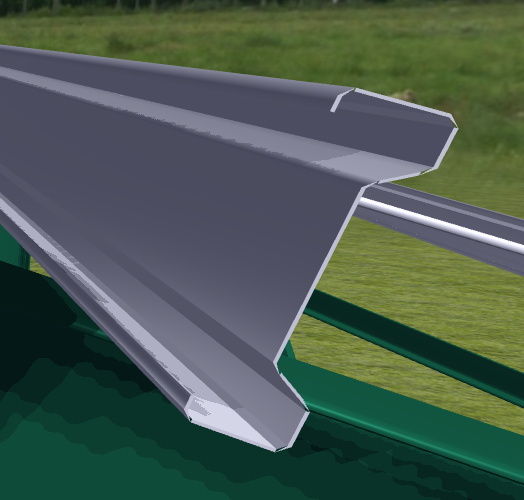

A cold-rolled sigma 200 purlin

With equal strength, use cold-rolled steel girts or purlins allow to reduce the amount of steel in the structure of a building.

Due to its low weight, the cold profile offers both:

What is a purlin?

Purlins are structural elements on which the roof of a building is laid. Their main role is to support the cover and transmit the efforts to the frames, but also:

Purlins can be of different materials: solid timber, laminated timber, hot-rolled steel IPE, or cold formed thin profile sigma, zed or ce.

What is a side rail?

The girts are at the walls what the purlins are at the roof of a building. The girts are structural elements on which are fixed the cladding and joineries of a building but can also act as anti-buckling brace component of the carrier structure.

Placement of purlins and side rails

They can be placed in front of the columns or above the rafters to realize continuity joints.

They can also be placed between the structural elements to limit their overflow.

The purlins located at the ridge at the rooftop are called «ridge purlins», purlins located near the gutter at the bottom of the cover are called «eave purlins».

The distance between purlins varies according to the type of cover (from about 1.38m for fiber cement to 4m for sandwich panels).

The span of discontinuous purlins can reach 10m, that of continuous purlins (sleeved) can exceed 15m.

Calculation of a cold formed purlin

To know which section and how many purlins are needed to build a building, it is necessary to perform a calculation.

Purlin analysis report examples with Lisa.blue

Purlin Zed 200 general report
Purlin Zed 200 ULS report at a specific point and combination

Here is the method:

1/ Determine the loads on a roof purlin according to Eurocode 1.
See how to determine the wind actions, snow loads, imposed loads on a building.

2/ The loads and the dimensions of the constructive assembly (the purlins, sleeves ...) are transmitted to the mechanical solver which determines the forces and deformations in each point of the pieces.

3/ The software «Lisa.blue» takes into account the lateral and rotational restraint of thin sections purlins by the cover. When the cover and the purlin comply with certain conditions of geometric proportion and thickness, Eurocode 3 allows to take into account a restraint of the purlin in lateral bending and to lateral instabilities (buckling, torsional buckling of the maintained sole). This is an asset that can reduce the number of purlins or limit the section. Thus it is important to choose the right cover because it can influence the price of the purlins.

4/ The software will determine if, at each point, the resistance of the purlin («Ultimate Limit States»), and its rigidity («Service Limit States») are sufficient in relation to the criteria given in the EN 1993-1-3 («Eurocode 3 - Design of steel structures - Part 1-3: General rules - Supplementary rules for cold-formed members and sheeting»).

For the Ultimate Limit States, the software will control various points indicated in the Eurocode EN 1993-1-3 standard, particularly:


For the Service Limit States, the software will control various points indicated in the standard Eurocode EN 1993-1-3 §7 by integrating the loss of stiffness due to local buckling and the distortion of the section (efficient section), in particular :

The limit criteria depend on the type of use (roofing inaccessible / accessible) or the presence of solar panels, ceilings, etc., for which the deformation criteria of their supports can depend on additional documents.

How to choose a cold rolled profile?

Sigma Profile Σ

They can be placed in continuity with sleeves. Their web provided with profiled stiffeners allows section profiling of important heights. To make frames, the profiles are usually assembled back to back by bolting, this allows to refocus the gravity center and torsion center of the section thus composed.

Zed Profile Z

They can be placed in continuity by interlocking by extending their extremities. The Z section is generally less prone to twisting because the shear center is at the web level, except in the case of a strong asymmetry of the flanges.

Ce Profile C

More often used for purlins of moderate height, to constitute the frame of house or the assembly of steel trusses.

Omega Profile Ω

The profile Omega is mostly used as secondary frame but can also be used as a purlin or a girt.

Manufacturers of cold-formed purlins

Accessories for cold-formed purlins

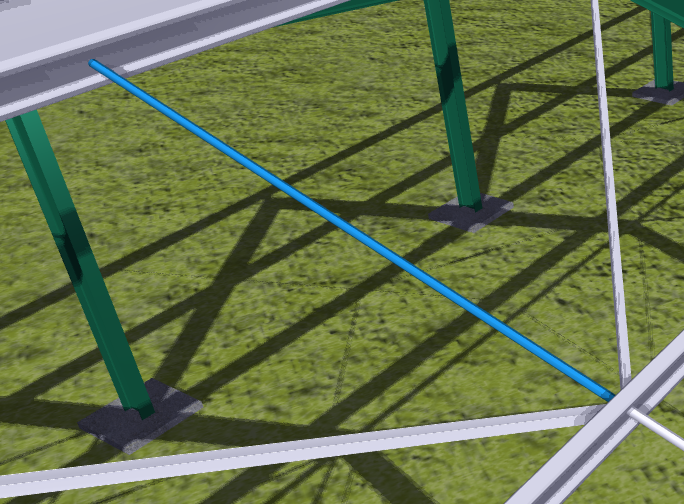

An anti-sag bar highlighted in blue in Lisa.blue

Purlins anti-sag bars

When the purlins are inclined in the plane of the roof, they bend perpendicularly to the web according to their low inertia. It is possible to reduce this phenomenon by arranging anti-sag bars (round / rectangular tubes, cables, angles or flat irons) perpendicularly to the purlins. These anti-sag bars act as intermediary lateral supports and transmit the forces in the slope direction (traction or compression) to the braces.

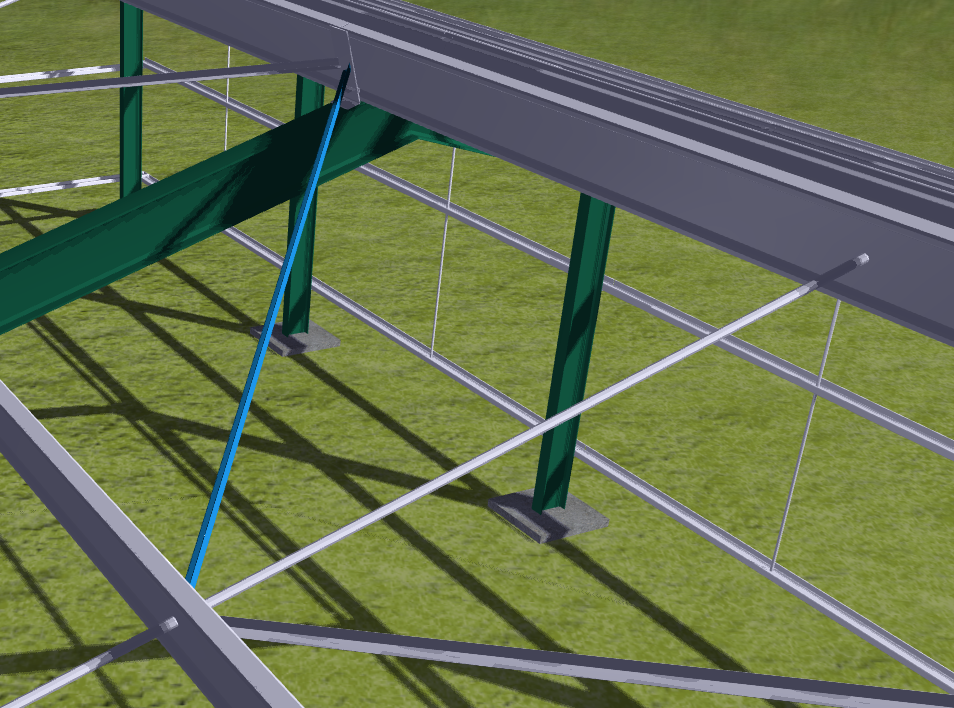

A tension wire highlighted in blue in Lisa.blue

Tension wires or braces

The tension wires (cables, angles or flat irons) are placed in association with the anti-sag bars. They transmit the efforts of the liernes towards the frames and are strained because their slenderness does not allow compression work. The tension wires are usually set up at the top of the slope so that the anti-sag bars are mostly strained. When tension wires are placed at the bottom of the slope, the anti-sag bars are compressed and must therefore be checked in buckling (the cables can not then be used as antisag bars).

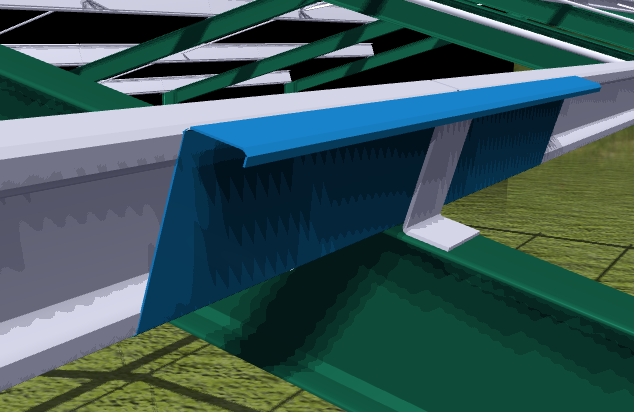

A sleeve highlighted in blue in Lisa.blue

Sleeves

The sleeves act as a continuity of purlins that reduces the effects in spans. They are sheet thicker than the purlins because the moment acting on support is then maximum. The holes made for their bolting include an assembly space, it must be taken into account in the calculations by a decrease in the moment on support and an increase in the moment and the deflection on span compared to an ideally continuous beam. Zed purlins do not need sleeves to ensure their continuity, they are nested inside each other (one of the two flanges is smaller than the other, so as to reverse it to each span). The bolts must be checked in simple shear and more particularly in diametric pressure on the side of the purlin which is thinner.

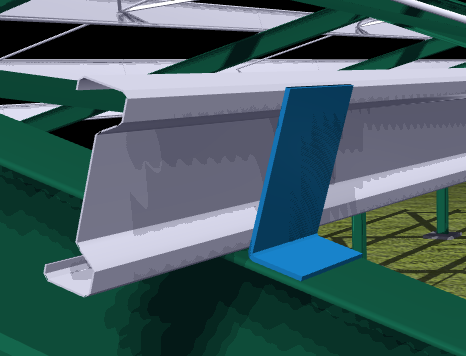

A cleat highlighted in blue in Lisa.blue

Cleats

The cleats are used to attach the purlins to the frames. They can transmit efforts on 3 axes:
  • vertically perpendicular to the rafter due to the loads on the roof
  • vertically along to the axis of the rafter due to the loads on the roof
  • horizontally perpendicular to the rafter due to wind forces on gables or seismic forces
They are made from folded sheets that can be reinforced by stiffeners in the case of heavy loads causing bending in the bolted web to the purlin or the bolted flange on the rafter.

How are cold-formed zed or sigma sections made?

To manufacture cold-rolled sections, high yield strength galvanized steel strip coils are required (for example: S350GD + Z275) and a roll forming line composed of:

Manufacturers of roll forming line

A manufacturer is missing? contact us.
