Seism zones in Belgium

Get now the seismic actions on your building with Lisa.blue!

Seismic zoning to consider in Belgium

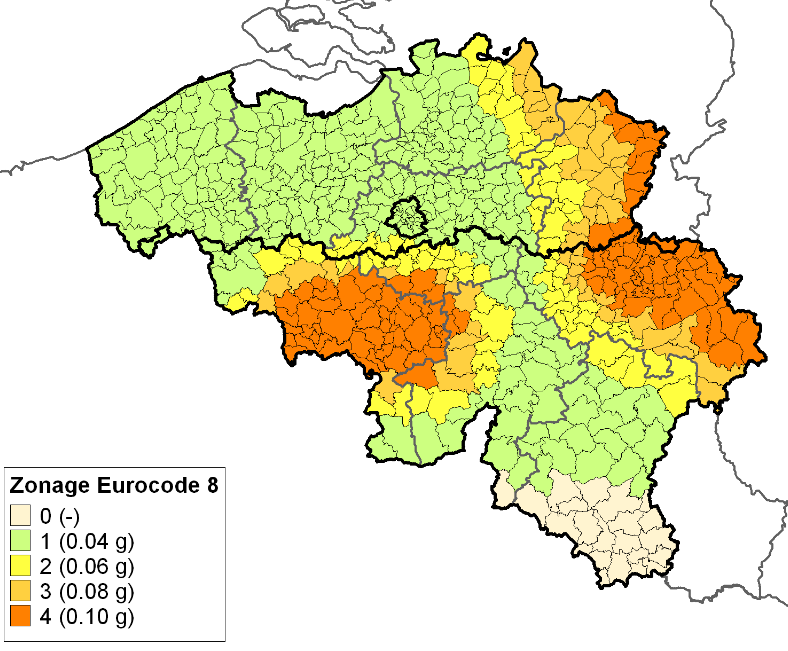

Seismic zoning map to consider in Belgium

Reference peak ground acceleration on type A ground in m/s², by zone according to NBN EN 1998-1 ANB:2009(F)
Zones 0 1 2 3 4
Reference peak ground acceleration agr on type A ground in m/s² No significant acceleration 0,39 0,59 0,78 0,98

Values of the periods and soil factor describing the shape of the horizontal response spectra
Ground type S TB(S) TC(S) TD(S)
A 1,0 0,05 0,25 1,2
B 1,35 0,05 0,25 1,2
C 1,5 0,10 0,25 1,2
D 1,8 0,1 0,3 1,2
E 1,6 0,05 0,25 1,2

Values of parameters describing the shape of the vertical response spectra
Spectrum avg / ag TB(S) TC(S) TD(S)
Type 2 0,45 0,05 0,15 1,0
