Snow loads map and effect of altitude to consider in United Kingdom
Lisa.blue determine automatically your wind and snow zones and load in the United Kingdom.
Signup to Lisa.blue now! < 2min!

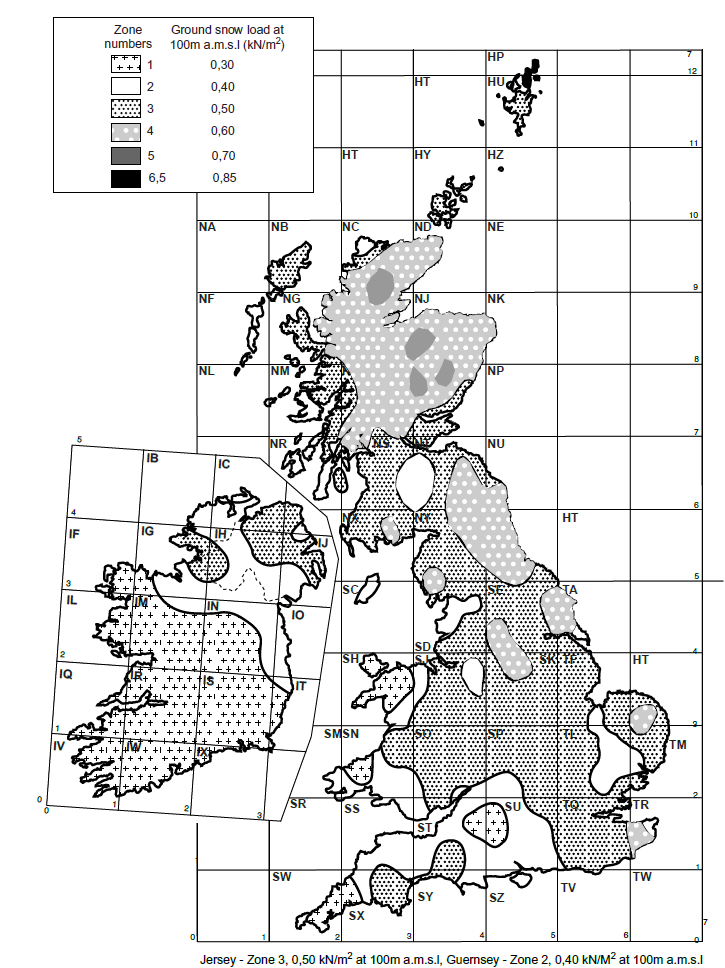

Snow loads map to consider in United Kingdom
Snow loads values in kN/m², by zone according to NA to BS EN 1991-1-3 (06 2007)
Zones Z
1
2
3
4
5
6.5
Characteristic value (S
k
) of the snow load on the ground to an altitude below 100 m
Design value (S
Ad
) of exceptional snow load on the ground
-
Characteristic load variation law for altitudes above 100 m
